Cost Price Of 1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Feed Pellet Machine
Date: 07/17/2020 08:13:46 From: feed-pellet-plant.com Clicks:
Good day, Richi Machinery. Kindly provide me with details cost of acquiring and setting up of a complete machinery for producing Poultry Feed for the following capacity; 1-2 T/H, 5-8 T/H, 8-12 T/H and 15-30 T/H, Thank you.
This is a customer from Kenya who wants to build a large-scale feed factory and is preparing to purchase four feed pellet production lines, not just a feed pellet machine. Due to the different output, the purchased mechanical equipment such as hammer mill, pellet machine, cooler, baler and so on are also different. Each mechanical equipment has many models and output, Richi mechanical engineers will free design plans and quotations to customers for reference.
Cost Price Of 1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Feed Pellet Machine
I.Cost Price Of 1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Feed Pellet Machine
The cost of each feed pellet machine produced by Richi Machinery is very high, because the materials used are much better than the average manufacturer. For example, bearings, we use SKF bearings, the quality is better, so the cost is higher. Also, the steel plates we use are thickened steel plates. Users must not forget to compare quality when comparing prices. The same quality, our price is low. At the same price, the quality of our products is high. No matter which customer comes to consult, we will give the best price. Although we are doing well in China, Richi Machinery has not formed a big brand globally, so we have always been affordable prices, you choose us is the right choice!
II.1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Hammer Mill
Hammer Mill is widly used in animal feed processing, brewing, chemical and biological industry.Grain crushing machine, feed crusher for sale factory price is attractive.In addition, The machine structure is simple, fastening durable, safe, reliable with easy installation and simple operation.
Hammer Mill
Hammer Mill Parameter
Model | SFSP56*40a | SFSP56*40b | SFSP66*60a | SFSP66*60b | SFSP66*80a | SFSP66*80b | SFSP66*100 | SFSP138*30E | SFSP138*40E |
Power | 30kw | 37kw | 55kw | 75kw | 90kw | 110kw | 132kw | 110/132kw | 132/160kw |
Capacity | 3-5T/H | 4-6T/H | 5-8T/H | 6-9T/H | 8-10T/H | 10-13T/H | 12-16T/H | 15-20T/H | 18-25T/H |
Speed | 2980r/min | 2980r/min | 2980r/min | 2980r/min | 2980r/min | 2980r/min | 2980r/min | 1440r/min | 1440r/min |
III.1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Feed Pellet Machine

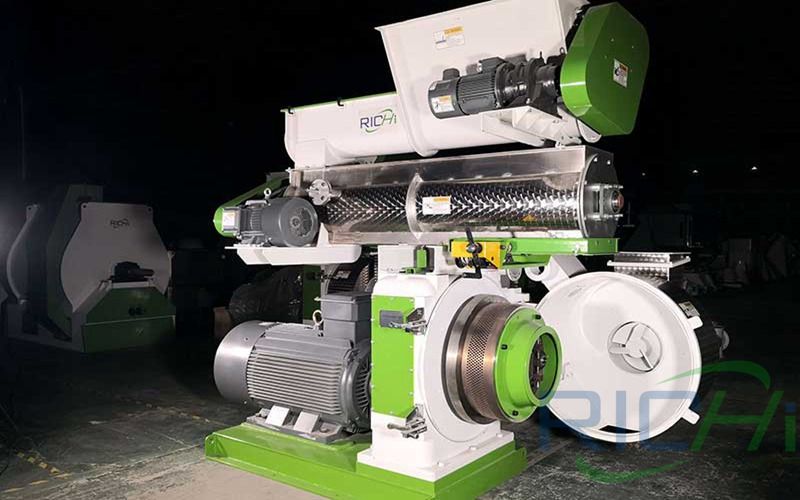

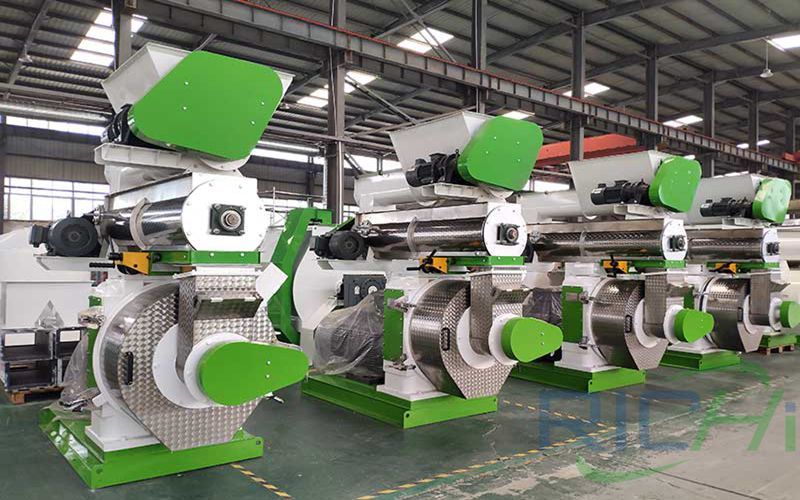

Feed Pellet Machine
Feed Pellet Machine Parameter
Model | Capacity(TPH) | Main Motor Power(kw) | Feeder Motor Power(kw) | Conditioner Power(kw) | Dia.of Ring Die(mm) | Final Pellet(mm) |
SZLH250 | 1-2 | 22 | 0.75 | 1.5 | 250 | 2~12 |
SZLH320 | 3-4 | 37 | 1.5 | 2.2 | 320 | 2~12 |
SZLH350 | 5-7 | 55 | 1.5 | 3 | 350 | 2~12 |
SZLH420 | 8-12 | 110 | 1.5 | 7.5 | 420 | 2~12 |
SZLH508 | 10-18 | 160 | 2.2 | 11 | 508 | 2~12 |
SZLH558 | 15-25 | 180/200 | 2.2 | 11 | 558 | 2~12 |
SZLH558D | 14-22 | 160/180/200 | 1.5 | 7.5 | 558 | 2~18 |
SZLH678 | 20-30 | 220/250 | 2.2 | 11 | 678 | 2~12 |
SZLH678D | 15-25 | 200/220/250 | 2.2 | 11 | 673 | 2~18 |
SZLH768 | 25-40 | 280/315 | 2.2 | 11 | 768 | 2~12 |
SLZH858 | 25-42 | 280/315 | 2.2 | 15 | 858 | 2~18 |
IV.1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Counterflow Cooler

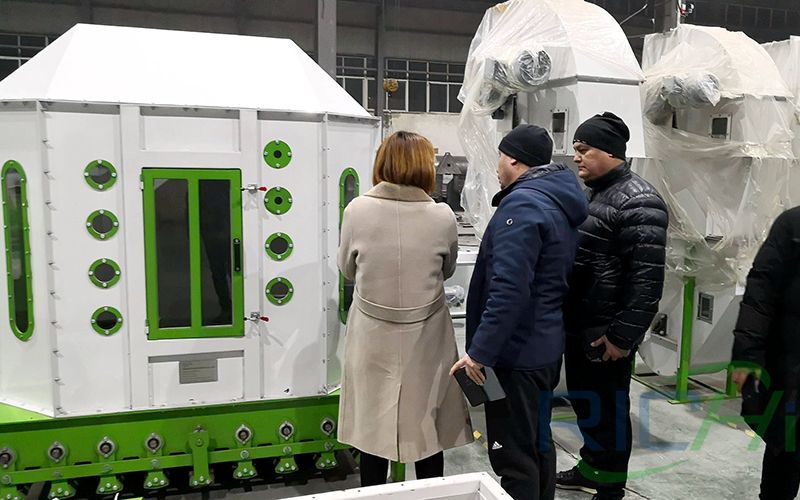

Counterflow Cooler
SKLN Series Counterflow Cooler is to cool the produced feed pellets, which is convenient for packaging.SKLN Series Counterflow Cooler widely applied in feed processing industry for cooling of all kinds of pellet materials.
Counterflow Cooler Parameter
Model | SKLN11*11 | SKLN14*14 | SKLN17*17 | SKLN20*20 | SKLN24*24 |
Capacity(t/h) | 1.5-2 | 3-5 | 5-8 | 9-12 | 13-18 |
Power(kw) | 0.75 | 0.75 | 1.1 | 2.05 | 2.05 |
V.1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Packing Machine
The automatic feed pellet weighing and packing machine is suitable for large and medium sized feed pellet production plants. It is always applied to a automatic weighing and packing system combined with the transport mechanism and the sewing machine. The automatic weighing and packing machine can pack feed pellets, wood pellets, fertilizer granules and other particle material and powder material with good fluidity. With an excellent performance, it has been adopted by a great many large feed pellet production factories.
Packing Machine Parameter
Model | DCS-A50/Z | DCS-B50/M | DCS-B50/D | DCS-C50/S |
Power | 3KW | 3KW | 3KW | 3KW |
Feeding method | Belt | Belt | Belt | Belt |
Packing Weight | 20-50kg/bag | 20-50kg/bag | 20-50kg/bag | 15-50kg/bag |
Packing speed | 6-8bags/minute | 6-8bags/minute | 6-8bags/minute | 10-12bags/minute |
Packing Precision | Static ±0.1%;Dynamic ±0.2% | Static ±0.1%;Dynamic ±0.2% | Static ±0.1%;Dynamic ±0.2% | Static ±0.1%;Dynamic ±0.2% |
Display resolution | 10G | 10G | 10G | 10G |
Temperature range | -10 to 40℃ | -10 to 40℃ | -10 to 40℃ | -10 to 40℃ |
Installation height | Refer to the drawing | Refer to the drawing | Refer to the drawing | Refer to the drawing |
Voltage | 380V/50HZ& Customized | 380V/50HZ& Customized | 380V/50HZ& Customized | 380V/50HZ& Customized |
Air Supply | 0.4-0.6Mpa 2m³/h | 0.4-0.6Mpa 2m³/h | 0.4-0.6Mpa 2m³/h | 0.4-0.6Mpa 2m³/h |
VI.Why Choose RICHI Machinery Animal Feed Pellet Machine?
RICHI Machinery, as a leading manufacturer of animal feed pellet machine, provides quality feed making equipments and professional service to the agricultural and aquacultural industry.
feed-pellet-mill-manufacturer-RICHI Machinery
Low cost, convenient operation and maintenance
High yield, energy-saving and environmental friendly
Designed by RICHI Machinery research and development team
Nearly 30 years experience in feed pellet mill manufacturing, installation and commissioning
Exported to 93 countries around the world, including UK, Nigeria, Thailand, India, Australia, South Africa, Pakistan, Kuwait, United States, Japan, Philippines, Portugal, etc.
The above is the article for you: Cost Price Of 1-2T/H, 5-8 T/H, 10-12 T/H and 15-30 T/H Feed Pellet Machine. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com
