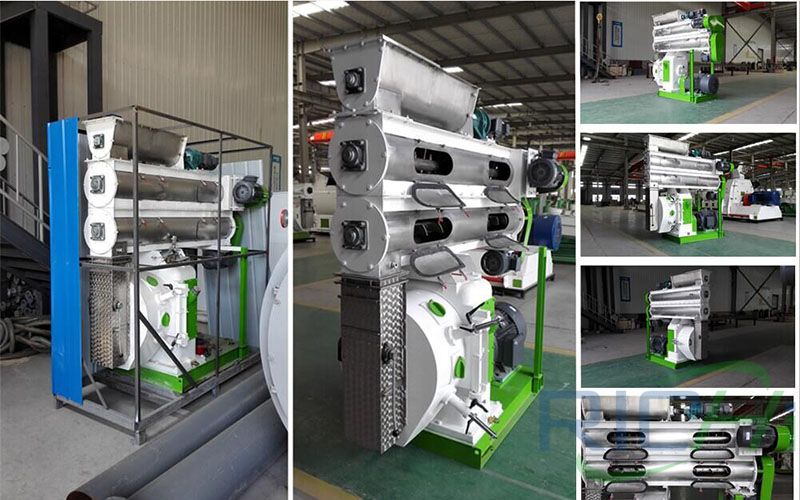

Deliver pellet machine to UK customer
Date: 06/16/2020 09:19:23 From: feed-pellet-plant.com Clicks:
Technical Parameters of feed pellet mill
| Items | SZLH350 |
| Production Capacity | 5t/h |
| Power of Main Motor | 55kw |
| Power of Feeding Screw Motor | 1.5kw |
| Power of conditioner Motor | 6kw |
| Diameter of ring die | Φ350mm |
| Speed of ring die(r/min) | 336r/min |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | 350r/min |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ165mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.1-0.4Mpa |
| Steam consumption(t/h) | ≥0.3 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2235*1010*2445mm |
| Machine weight | 2200kg |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
We are providing all kinds of hammer mill, mixer, dryer, pellet mill, cooling machine, packing machine. Any requirement for animal feed pellet project or biomass pellet project , just contact me freely.
Deliver pellet machine to UK customer
The above is the article for you: Deliver pellet machine to UK customer. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com
