Fish Feed Pellet Extruder
Model: DGP & DSP
Capacity: 0.03-4t/h
Certification: CE & SGS & ISO
Application: for Kinds of Aquafeed Feed Industry
Product Description
Classification Features of Fish Feed Extruder
Fish feed pellet extruder machine for sinking & floating can be divided into two types: Dry type fish feed extruder and Wet type fish feed extruder. The differences and features of the dry type and wet type pellet feed extruder:
1. Dry type fish feed extruder does not need the steam boiler while the wet type is with the conditioner and need to equip the steam boiler. So the dry type fish feed pellet extruder machine is cheaper and easier to use and operate
2. The feed pellet made by wet type fish feed pellet machine is more smooth and with better quality because the material is ripen and mixed enough in the conditioner compared with the dry type extruder.
3. The capacity of the wet type is higher than the dry type feed pellet extruding machine, so usually the wet type fish feed extrusiong machine is suitable for large feed pellet factory while the dry type fish feed pellet machine is better and economic for the small and medium size user or factory.
-
- When the raw material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which can make the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mold. After that a cutting device will cut the formed pellets into different length as required.

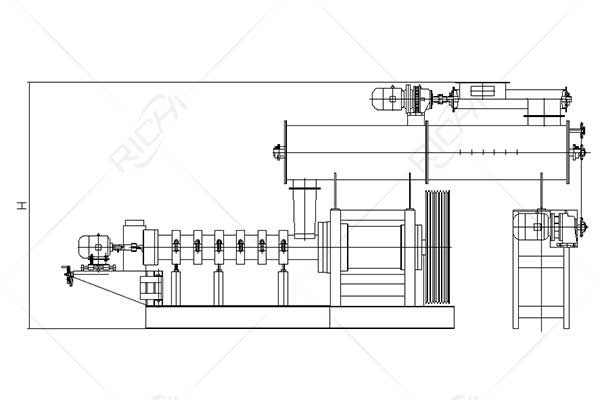

Fish Feed Pellet Extruder Details
Features
1.Simple structure, widely used, small flooring space, low noise.
2.Different moulds can be chosen to make pellets with different diameters and shapes.
3.The floating pelletized feed produced can float on the surface of the water for at least 12 hours without blistering.
4.Generally, puffed floating fish feed is used to save 8%-15% of feed compared to powdered or granular feed.
5.Fish and poultry prefer to digest, and the artificial frog can easily observe the food consumption of the frog fish without causing waste of feed.
6.This fish feed pellet extruder also applies to make pellet feed for rabbits, ducks and the like. What’s more, the pellet feed is more economical than the compound mash feed.
7.There are many different press molds you can choose in according to the size of the pellet that you.
Parameter
| DGP Dry Type Fish Feed Extruder Parameter | ||||||
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) | |
| DGP40-Cs | 0.03-0.04 | 3.0*2 | 0.4 | Φ40 | 0.4 | |
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 | |
| DGP50-C | 0.06-0.08 | 11 | 0.4 | Φ50 | 0.4 | |
| DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | |
| DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 | |
| DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 | |
| DGP90-B | 0.30-0.35 | 37 | 0.6 | φ90 | 0.8 | |
| DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 | |
| DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 | |
| DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 3 | |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0-4.0 | |
| DSP Wet Type Fish Feed Extruder Parameter | ||||||
| Model | Capacity(t/h) | Main motor power(kw) | Feeder power(kw) | Screw diameter(mm) | Cutter power(kw) | Conditioner power(kw) |
| DSP60-B | 0.18-0.2 | 15 | 0.4 | Φ60 | 0.4 | 0.75 |
| DSP70-B | 0.25-0.30 | 18.5 | 0.6 | Φ70 | 0.6 | 0.75 |
| DSP80-B | 0.35-0.40 | 22 | 1.1 | Φ80 | 0.8 | 1.1-1.5 |
| DSP90-B | 0.50-0.60 | 37 | 1.1 | Φ90 | 1.1 | 2.2 |
| DSP120-B | 0.70-0.80 | 55 | 1.1 | Φ120 | 1.5 | 2.2-3.0 |
| DSP135-B | 1.0-1.2 | 75 | 1.5 | Φ135 | 2.2 | 3.0-4.0 |
| DSP160-B | 1.8-2.0 | 90 | 2.2 | Φ155 | 2.2-3.0 | 4.0-5.5 |
| DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 5.5 |
| DSP200-B | 3.0-4.0 | 132 | 2.2 | Φ195 | 3.0-4.0 | 5.5 |
